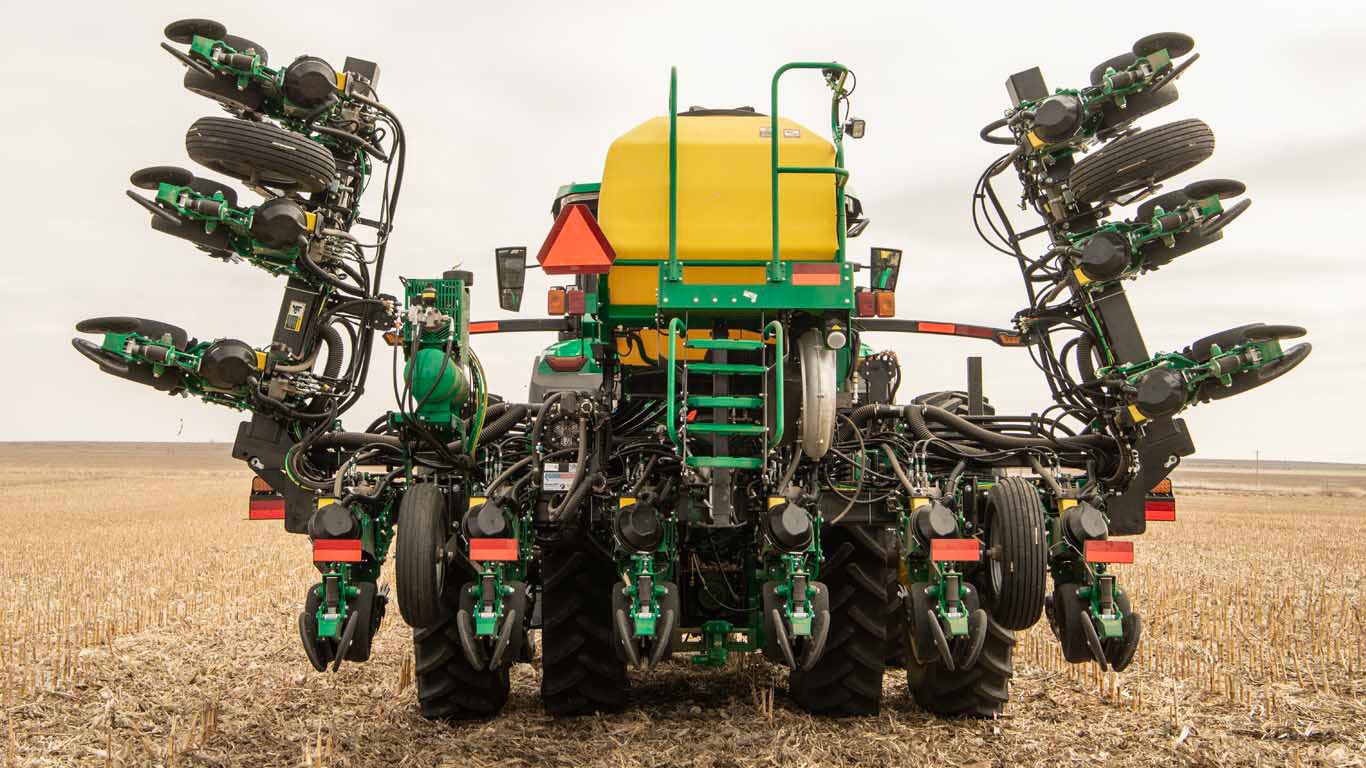

New MP512 Planter

Specifications

Number of rows	12
Row spacing	76.2 cm 30 in.
Frame - Fold configuration	Vertical fold
Frame - Flexibility	Up: 10 degree (angle) Down: 7 degree (angle)
Row unit seed hoppers	Central Commodity System: 1,938 L 55 bu
Seed Meters

Number of rows	12
Row spacing	76.2 cm 30 in.

Fold configuration	Vertical fold
Frame tube size
Fold-and-go from tractor cab
Flexibility	Up: 10 degree (angle) Down: 7 degree (angle)

Base
Optional
Rear hitch

Type	Semi-integral only
Number of cylinders

Base	12.5L-15SL 20 ply implement: 303 kPa 3.0 bar 44 psi 7.60-15 8 ply implement: 359 kPa 3.6 bar 52 psi 7.6-15 6 ply - traction: 276 kPa 2.8 bar 40 psi
Optional
Quantity

Type	ExactEmerge™ row units
Opener	Tru-Vee Double Disk
Depth gauging
Adjustment
Walking wheels
Row unit seed hoppers	Not available
Row unit down force	Individual Row Hydraulic Downforce (IRHD)
Scrapers, opener blades
Seed tube sensors

Base	Vacuum
Optional
Finger pickup
Radial bean meter
Central Commodity System	Seed capacity 1938 L 55 bu Yes

Base	Electric drive: 56 V
Optional
Number of drive wheels
Drive wheel disconnect
Counter shaft
Drill shaft
Seed transmission
Transmission combinations

Type
Control
Marker disk
Shear bolt protection
Less marker option

Rubber tire closing system
Cast iron closing system

Insecticide only hopper
Herbicide only hopper
Insecticide and herbicide hopper

System available
Tank capacity

Base	SeedStar™ 5
Optional

Unit-mounted coulter
Frame-mounted coulter
Bubble blade
.63-in. fluted blade (25 flutes)
.7-in. fluted blade (13 flutes)
1-in. fluted blade (8 flutes)
Row tillage support hanger
Tine tooth
Cons. furrower w/ leading cutout blade
V-wing bed sweeps
Row cleaner
Row cleaner - unit-mounted coulter
Row cleaner - unit-mounted DD fert. opener

Onboard / towed / tractor tanks
Tank capacity
Fixed-rate application
Variable-rate application
Pump type
Pump rate
Fertilizer opener type
Flow divider distribution system
Pressure manifold distribution system
Dry fertilizer
ExactRate Fluid Transfer System

Transport width (with markers)
Transport width (without markers)	From 5.5 to 6.8 m 17 ft 11 in. to 22 ft 2 in.
Transport length
Transport height	From 1.6 to 4.01 m 5 ft 2 in. to 13 ft 2 in.
Transport weight
Transport underframe clearance	On 8000 Series tractors with 18.4-42 tires: 4 m 13.2 ft
Field operation height
Field operation width
Field operation length

Map-based seeding
Field documentation
Parallel tracking

Recommended tractor horsepower	8030, 8R, 8RX, 8030T, and 8RT Series Tractor (power take-off [PTO] power of 183 kW [245 hp] or more) 3-point lift capacity of greater than 6700 kg (14,775 lb) minimum Three or four selective control valves (SCVs) for power beyond, load sense, and case drain hydraulic connections are required, depending on machine options: SCV 1 – wing downforce/gull wing (when equipped), SCV 2 – fold/unfold, SCV 3 – CCS, SCV 4 – vacuum Power beyond – Individual Row Hydraulic Downforce (IRHD), ExactRate™ fertilizer, or PDF compressor with load sense Load sense – IRHD, ExactRate fertilizer, or PDF compressor with load sense Case drain – vacuum or PDF compressor with load sense Independent-Link Suspension (ILS™) or 1500 mechanical front-wheel drive (MFWD) tractor front axle required Rear duals and full set of front weight
Recommended tractor hydraulics	Hydraulic oil required to operate the planter: 227 L/min (60 gpm) Hydraulic system standby pressure: 15,513 kPa (155 bar) (2250 psi) Hydraulic system working pressure: 20,684 kPa (207 bar) (3000 psi) Hydraulic system burst pressure: 82,737 kPa (827 bar) (12,000 psi)
Warranty length
Date collected
