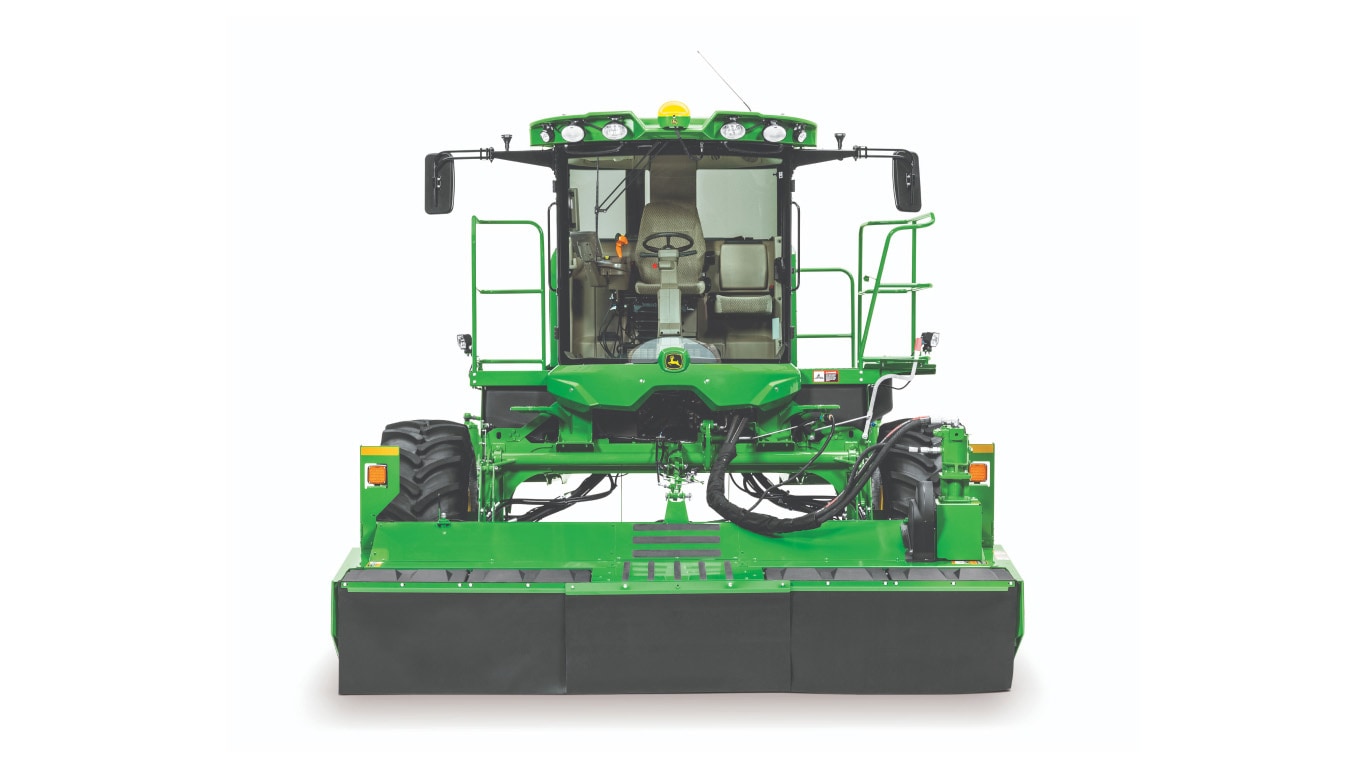

New W260M Windrower

Specifications

Engine - Model	PowerTech™ PSS Final Tier 4
Horsepower	At 2,400 rpm: 193 kW 260 hp
Ground drive - Type	Two-speed hydrostatic
Fuel - Capacity	568 L 150 U.S. gal. DEF: 26.5 L 7 U.S. gal.
Low range	With two speed: 24.1 km/h 15 mph
High range 2 speed / Mid range 3 speed	With two speed: 38.4 km/h 24 mph
Vehicle	Standard width stance with suspended rear axle in base
Seat	Air suspension
Under frame clearance	1120 mm 44 in.
Weight - Total	6998 kg 15,428 lb

Make
Model	PowerTech PSS Final Tier 4
Horsepower	At 2,400 rpm: 193.9 kW 260 hp
No. of cylinders	Six
Exhaust direction	Vertical
Engine displacement	6.8 L 415 cu in.
Engine speeds	Low idle 900 rpm Variable idle Electronic adjustable from 1,700 to 2,450 rpm High idle (no load) 2,450 rpm Rated speed 2450 rpm
Oil crankcase capacity (with filter)	31.4 L 33.2 U.S. qt
Cooling system	49.2 L 52 U.S. qt
Bearings

Type	Base: Two-speed hydrostatic

Number of pumps (Rotary/Auger)	One
Number of motors (Rotary/Auger)	One
Pump displacement	115 cc 7.02 cu in.
Motor displacemen	Per revolution: 75.4 cm3 Per revolution: 4.6 cu in.

Type	Hydraulic piston accumulator

Type	Direct drive heavy-duty wheel motors
Ratio

Type / Activation	Manual parking brake engage button on armrest Parking brake automatically engages and disengages; integrated into multi-function lever

Reservoir capacity	94.5 L 25 U.S. gal.

Capacity	568 L 150 U.S. gal. DEF: 26.5 L DEF: 7 U.S. gal.

Alternator	240 amp
Battery	Heavy-duty 12 V

Drive wheel standard	620/75R26 Bar
Drive wheel option	Hybrid tires: 480/80R34 Radial button: 23.1R26 R3
Caster wheels	14Lx16.1 8-ply ribbed
Caster wheels option

Low range	With two speed: 24.1 km/h 15 mph
High range 2 speed / Mid range 3 speed	With two speed: 38.4 km/h 24 mph
High range with 3 speed

Vehicle	Suspended rear axle in base
Cab	Air-ride seat suspension for smooth ride

Construction	Uni-body, welded
Glass	5.45 m2 58.7 sq ft
Seat	Air suspension
Steering column	Dual-tilt telescoping
Instructional seat	Standard
Windshield wiper	Single blade
Air conditioner	Refrigerant R134a Capacity 2.5 kg 5.5 lb Filters Dry type, reusable Compressor Rotary Overload protection Low-pressure and high-pressure cut off Standard with manual temperature control

Front	Six halogen
Side	Four optional
Back	Standard: Two halogen
HID

Type	Electronic touchsceen: 21.4 cm 8.4 in.

Overall length without platform	5,900 mm 225.5 in.
Overall height	3,760 mm 148 in.
Under frame clearance	1,120 mm 44 in.
Wheelbase	3710 mm 146 in.
Track width	3400 mm 133 in.
Turning radius

Without platform, full fuel
Front axle	4370 kg 9636 lb
Rear axle	2627 kg 5792 lb
Total	6998 kg 15,428 lb

Manufacturer's warranty	Full machine: 1 year Engine: 2 year; 2,000 hours
